7mm Bandwidth Hydraulic Single Ear Clamp
Easy installation: Hose clamps are designed with through-hole process, even for slotted holes, steel band through-hole, tight lock and strong torque. Stainless steel hose clamps have a stronger tightening force, easy to install.
Excellent performance: stainless steel hose clamps with high torque, easy to install, adjustable range, secure fixing, smooth driving.
Wide range of uses: stainless steel hose clamps are ideal for home, automotive, industry, gardening, machinery, electronics, ships, etc. Hose clamps are ideal for sealing hoses, water pipes, tubes, pipes, fittings, cables, pipes, fuel lines, cars, trucks; indoor or outdoor use.
Hose clamps are beautifully shaped and have a smooth and burr-free precision polished surface.
The surface is smooth and burr-free, and it is not easy to scratch the tube
Main Market: Russia, Europe, America and some countries in the Middle East
Product Description
Model Number:Single Ear Hose Clamps
Structure:pipe clamps
Usage:Pipe Clamp
DIY Supplies:Metalworking
Material:Stainless Steel
1、Excellent performance: stainless steel hose clamps with high torque, easy to install, adjustable range, secure fixing, smooth driving.
2、Easy installation: Hose clamps are designed with through-hole process, even for slotted holes, steel band through-hole, tight lock and strong torque. Stainless steel hose clamps have a stronger tightening force, easy to install.
3、Hose clamps are beautifully shaped and have a smooth and burr-free precision polished surface.
4、Wide range of uses: stainless steel hose clamps are ideal for home, automotive, industry, gardening, machinery, electronics, ships, etc. Hose clamps are ideal for sealing hoses, water pipes, tubes, pipes, fittings, cables, pipes, fuel lines, cars, trucks; indoor or outdoor use.
5. Hose clamps are ideal for installation in tight fitting or hard to reach areas.
|
NO. |
Parameters | Details |
|
1. |
Bandwidth*thickness | 5*0.5mm/7*0.6mm |
|
2. |
Size | 6.5mm to all |
|
3. |
Surface Treatment | Polishing |
|
4. |
OEM/ODM | OEM /ODM is welcome |
Product Video
Product Components
Production Application

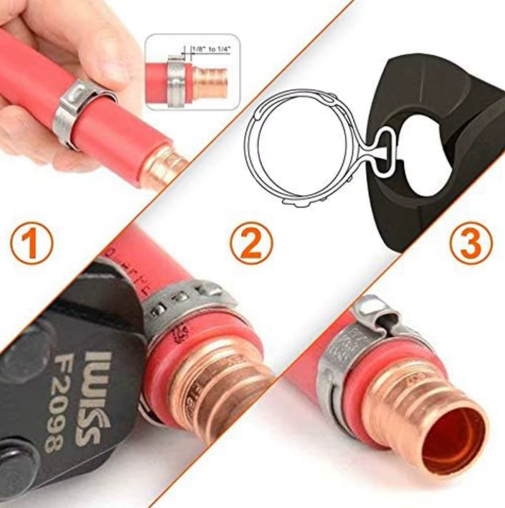

Stainless steel hoop earrings factory are an excellent addition to any push-lock hose assembly to properly maintain the seal through changes in pressure and temperature. After a special tool is used to compress the "ear" (sold separately), constant pressure is applied to squeeze the hose over the barb. Once installed, the clamp will never have to be re-tightened, making it superior to common worm-drive clamps. These clamps have 5mm and 7mm wide bands, and are available in packs of ten for 1/4'', 5/16'', 3/8'', 1/2'', 5/8'', and 3/4'' rubber push-lock or socketless hose. Please reference sizing chart below.

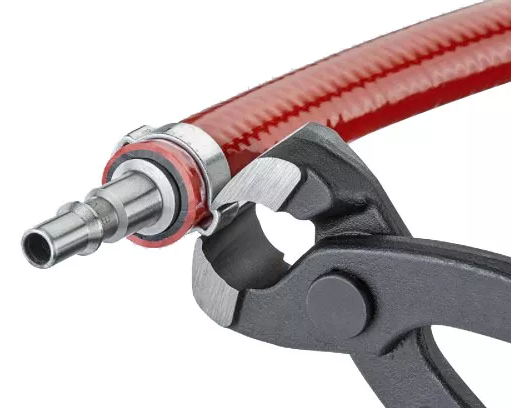

Ear clamps require a special tool to press the ear and tighten the clamp, which fastens a barbed fitting to push-lock or socketless hose. Single ear hose clamps tool is made from quality, corrosion-resistant chrome vanadium steel. Its slim head design allows easy access to confined areas, and the tool's chamfered teeth will not damage the clamp as it smoothly presses the ear.
Product Advantage
| Bandwidth | 12/12.7/15/20mm |
| Thickness | 0.6/0.8/1.0mm |
| Hole size | M6/M8/M10 |
| Steel Band | Carbon Steel or Stainless Steel |
| Surface treatment | Zinc Plated or Polishing |
| Rubber | PVC/EPDM/Silicone |
| EPDM Rubber temperature resistance | -30℃-160℃ |
| Rubber color | Black/ Red/ Grey/White/Orange etc. |
| OEM | Accpetable |
| Certification | IS09001:2008/CE |
| Standard | DIN3016 |
| Payment Terms | T/T,L/C,D/P,Paypal and so on |
| Application | Engine compartment, fuel lines, brake lines, etc. |
Packing Process
Box packaging: We provide white boxes, black boxes, kraft paper boxes, color boxes and plastic boxes, can be designed and printed according to customer requirements.
Transparent plastic bags are our regular packaging, we have self-sealing plastic bags and ironing bags, can be provided according to customer needs, of course, we can also provide printed plastic bags, customized according to customer needs.
Generally speaking, the outer packaging are conventional export kraft cartons, we can also provide printed cartons according to customer requirements: white, black or color printing can be. In addition to sealing the box with tape, we will pack the outer box, or set woven bags, and finally beat the pallet, wooden pallet or iron pallet can be provided.
Certificates
Product Inspection Report
Our Factory
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory welcome your visit at anytime
Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed
Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your
quantity
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free only you afford is freight cost
Q5: What is your terms of payment?
A: L/C, T/T ,western union and so on
Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
|
|
Min(mm) |
Max(mm) |
(mm) |
(mm) |
|
|
5.3 |
6.5 |
5 |
0.5 |
TOESS6.5 |
|
5.8 |
7 |
5 |
0.5 |
TOESS7 |
|
6.8 |
8 |
5 |
0.5 |
TOESS8 |
|
7 |
8.7 |
5 |
0.5 |
TOESS8.7 |
|
7.8 |
9.5 |
5 |
0.5 |
TOESS9.5 |
|
8.8 |
10.5 |
5 |
0.5 |
TOESS10.5 |
|
10.1 |
11.8 |
5 |
0.5 |
TOESS11.8 |
|
9.4 |
11.9 |
7 |
0.6 |
TOESS11.9 |
|
9.8 |
12.3 |
7 |
0.6 |
TOESS12.3 |
|
10.3 |
12.8 |
7 |
0.6 |
TOESS12.8 |
|
10.8 |
13.3 |
7 |
0.6 |
TOESS13.3 |
|
11.5 |
14 |
7 |
0.6 |
TOESS14 |
|
12 |
14.5 |
7 |
0.6 |
TOESS14.5 |
|
12.8 |
15.3 |
7 |
0.6 |
TOESS15.3 |
|
13.2 |
15.7 |
7 |
0.6 |
TOESS15.7 |
|
13.7 |
16.2 |
7 |
0.6 |
TOESS16.2 |
|
14.5 |
17 |
7 |
0.6 |
TOESS17 |
|
15 |
17.5 |
7 |
0.6 |
TOESS17.5 |
|
15.3 |
18.5 |
7 |
0.6 |
TOESS18.5 |
|
16 |
19.2 |
7 |
0.6 |
TOESS19.2 |
|
16.6 |
19.8 |
7 |
0.6 |
TOESS19.8 |
|
17.8 |
21 |
7 |
0.6 |
TOESS21 |
|
19.4 |
22.6 |
7 |
0.6 |
TOESS22.6 |
|
20.9 |
24.1 |
7 |
0.6 |
TOESS24.1 |
|
22.4 |
25.6 |
7 |
0.6 |
TOESS25.6 |
|
23.9 |
27.1 |
7 |
0.6 |
TOESS27.1 |
|
25.4 |
28.6 |
7 |
0.6 |
TOESS28.6 |
|
28.4 |
31.6 |
7 |
0.6 |
TOESS31.6 |
|
31.4 |
34.6 |
7 |
0.6 |
TOESS34.6 |
|
34.4 |
37.6 |
7 |
0.6 |
TOESS37.6 |
|
36.4 |
39.6 |
7 |
0.6 |
TOESS39.6 |
|
39.3 |
42.5 |
7 |
0.6 |
TOESS42.5 |
|
45.3 |
48.5 |
7 |
0.6 |
TOESS48.5 |
|
52.8 |
56 |
7 |
0.6 |
TOESS56 |
|
55.8 |
59 |
7 |
0.6 |
TOESS59 |
Packaging
Single ear hose clamps package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
- our colour box with logo.
- we can provide customer bar code and label for all packing
- Customer designed packing are available
Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.
We also accept special package with plastic separated box.Customize the box size according to customer’s requirements.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
