Product Description
Non-Stripping: The welded worm housing increases the breaking torque by 60%. Our hose clamp screw is big with deep thread. The band is non-perforated, thick and wide to prevent deforming if there is over-torque. These hose clamps are high-pressure to provide superior clamping force and safe sealing.
Non-Metric Sizes: The slotted screw clamp hex head is 5/16". Use either screwdriver or nut driver for quick tightening. The British diameter is marked on band surface for fast identification when using. No metric sizes mixing!
Protect Your Hose: The rolled band edge design is to prevent cutting into soft silicone, pvc or rubber hoses. The non-perforated band prevents it from extruding through the band notches. Our worm gear hose clamps are more reliable for garden water line tubing, heater pipe and automotive repair.
Hose Clamps Stainless Steel: The screw, buckle housing and band are all made of real 304 SS. The neutral salt spray test is 100 hours. With the superior corrosion resistance performance, our metal clamps can be used in indoor and outdoor places.
Widely Used: These tubing clamps are suitable for fuel line gas line, vehicle, radiator, heater, water line plumbing and marine applications. Please measure the pipe OD so that the correct sizes will be purchased.
Note: The screw is made of stainless steel 304 as well. Its surface is zinc plated to prevent metal grinding and micro welding when the clamp is torqued at high speed and heat is generated. It is for smooth worm drive. Please do not judge it is carbon steel due to color. All 304 SS should be emphasized.
|
NO. |
Parameters | Details |
|
1. |
Bandwidth*thickness | 12.7*0.6mm |
|
2. |
Size | 10-16mm to all |
|
3. |
Screw Slot | “-” and “+” |
|
4. |
Screw Wrench | 8mm |
|
5. |
Teeth | Hollow |
|
6. |
OEM/ODM | OEM /ODM is welcome |
Product Video
Heavy Duty American type hose clamp are available in SS200 series and SS300 series. For further information or products details, please feel free to contact us.
Product Components
Production Process
Production Application

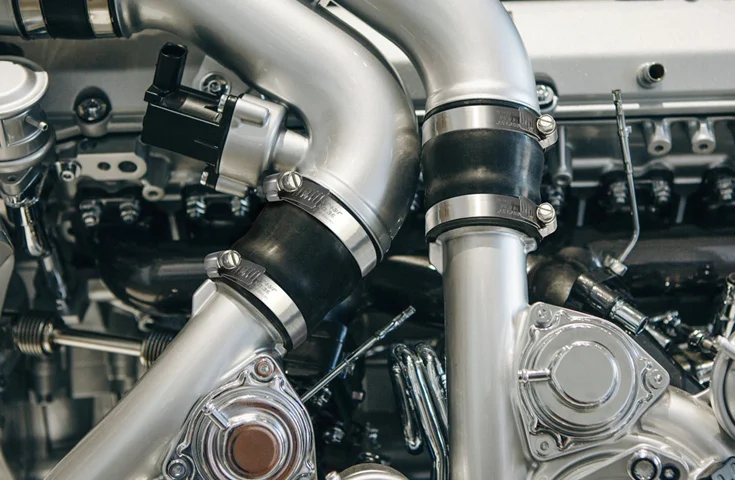

American style hose clamp manufacturers can be used in virtually any indoor and outdoor application. They are used in a leaking environment with intense vibration and under high pressure, like emission control, fuel lines and vacuum hoses, industry machinery, engine, tube (hose fitting ) for ship, etc.
Product Advantage
Simple and easy to use: The hose clamp is simple in design, easy to use, can be quickly installed and removed, and is suitable for fixing various pipes and hoses.
Good sealing: The hose clamp can provide good sealing performance to ensure that there will be no leakage at the pipe or hose connection and ensure the safety of fluid transmission.
Strong adjustability: The hose clamp can be adjusted according to the size of the pipe or hose, and is suitable for connecting pipes of different diameters.
Strong durability: Hose hoops are usually made of stainless steel or other corrosion-resistant materials. They have good durability and corrosion resistance and can be used for a long time in harsh environments.
Wide application: Hose clamps are suitable for various industries, including automobiles, machinery, construction, chemical industry and other fields, and are used to fix pipes, hoses and other connections.
Packing Process
Box packaging: We provide white boxes, black boxes, kraft paper boxes, color boxes and plastic boxes, can be designed and printed according to customer requirements.
Transparent plastic bags are our regular packaging, we have self-sealing plastic bags and ironing bags, can be provided according to customer needs, of course, we can also provide printed plastic bags, customized according to customer needs.
Generally speaking, the outer packaging are conventional export kraft cartons, we can also provide printed cartons according to customer requirements: white, black or color printing can be. In addition to sealing the box with tape, we will pack the outer box, or set woven bags, and finally beat the pallet, wooden pallet or iron pallet can be provided.
Certificates
Product Inspection Report
Our Factory
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory welcome your visit at anytime
Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed
Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your
quantity
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free only you afford is freight cost
Q5: What is your terms of payment?
A: L/C, T/T ,western union and so on
Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
|
Clamp Range |
Bandwidth (mm) |
Thickness (mm |
TO Part No. |
||||||
|
Min (mm) |
Max (mm) |
Inch |
|||||||
|
W1 |
W2 |
W4 |
W5 |
||||||
|
8 |
12 |
1/2” |
8/10 |
0.6/0.6 |
TOAG12 |
TOAS12 |
TOASS12 |
TOASSV12 |
|
|
10 |
16 |
5/8” |
8/10 |
0.6/0.6 |
TOAG16 |
TOAS16 |
TOASS16 |
TOASSV16 |
|
|
13 |
19 |
3/4” |
8/10 |
0.6/0.6 |
TOAG19 |
TOAS19 |
TOASS19 |
TOASSV19 |
|
|
13 |
23 |
7/8” |
8/10 |
0.6/0.6 |
TOAG23 |
TOAS23 |
TOASS23 |
TOASSV23 |
|
|
16 |
25 |
1” |
8/10 |
0.6/0.6 |
TOAG25 |
TOAS25 |
TOASS25 |
TOASSV25 |
|
|
18 |
32 |
1-1/4” |
10/12.7 |
0.6/0.7 |
TOAG32 |
TOAS32 |
TOASS32 |
TOASSV32 |
|
|
21 |
38 |
1-1/2” |
10/12.7 |
0.6/0.7 |
TOAG38 |
TOAS38 |
TOASS38 |
TOASSV38 |
|
|
21 |
44 |
1-3/4” |
10/12.7 |
0.6/0.7 |
TOAG44 |
TOAS44 |
TOASS44 |
TOASSV44 |
|
|
27 |
51 |
2” |
10/12.7 |
0.6/0.7 |
TOAG51 |
TOAS51 |
TOASS51 |
TOASSV51 |
|
|
33 |
57 |
2-1/4” |
10/12.7 |
0.6/0.7 |
TOAG57 |
TOAS57 |
TOASS57 |
TOASSV57 |
|
|
40 |
63 |
2-1/2” |
10/12.7 |
0.6/0.7 |
TOAG63 |
TOAS63 |
TOASS63 |
TOASSV63 |
|
|
46 |
70 |
2-3/4” |
10/12.7 |
0.6/0.7 |
TOAG70 |
TOAS70 |
TOASS70 |
TOASSV70 |
|
|
52 |
76 |
3” |
10/12.7 |
0.6/0.7 |
TOAG76 |
TOAS76 |
TOASS76 |
TOASSV76 |
|
|
59 |
82 |
3-1/4” |
10/12.7 |
0.6/0.7 |
TOAG82 |
TOAS82 |
TOASS82 |
TOASSV82 |
|
|
65 |
89 |
3-1/2” |
10/12.7 |
0.6/0.7 |
TOAG89 |
TOAS89 |
TOASS89 |
TOASSV89 |
|
|
72 |
95 |
3-3/4” |
10/12.7 |
0.6/0.7 |
TOAG95 |
TOAS95 |
TOASS95 |
TOASSV95 |
|
|
78 |
101 |
4” |
10/12.7 |
0.6/0.7 |
TOAG101 |
TOAS101 |
TOASS101 |
TOASSV101 |
|
|
84 |
108 |
4-1/4” |
10/12.7 |
0.6/0.7 |
TOAG108 |
TOAS108 |
TOASS108 |
TOASSV108 |
|
|
91 |
114 |
4-1/2” |
10/12.7 |
0.6/0.7 |
TOAG114 |
TOAS114 |
TOASS114 |
TOASSV114 |
|
|
105 |
127 |
5” |
10/12.7 |
0.6/0.7 |
TOAG127 |
TOAS127 |
TOASS127 |
TOASSV127 |
|
|
117 |
140 |
5-1/2” |
10/12.7 |
0.6/0.7 |
TOAG140 |
TOAS140 |
TOASS140 |
TOASSV140 |
|
|
130 |
153 |
6” |
10/12.7 |
0.6/0.7 |
TOAG153 |
TOAS153 |
TOASS153 |
TOASSV153 |
|
|
142 |
165 |
6-1/2” |
10/12.7 |
0.6/0.7 |
TOAG165 |
TOAS165 |
TOASS165 |
TOASSV165 |
|
|
155 |
178 |
7” |
10/12.7 |
0.6/0.7 |
TOAG178 |
TOAS178 |
TOASS178 |
TOASSV178 |
|
American type hose clamps package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
* our colour box with logo.
* we can provide customer bar code and label for all packing
*Customer designed packing are available
Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.
We also accept special package with plastic separated box.Customize the box size according to customer’s requirements.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
