Product Description

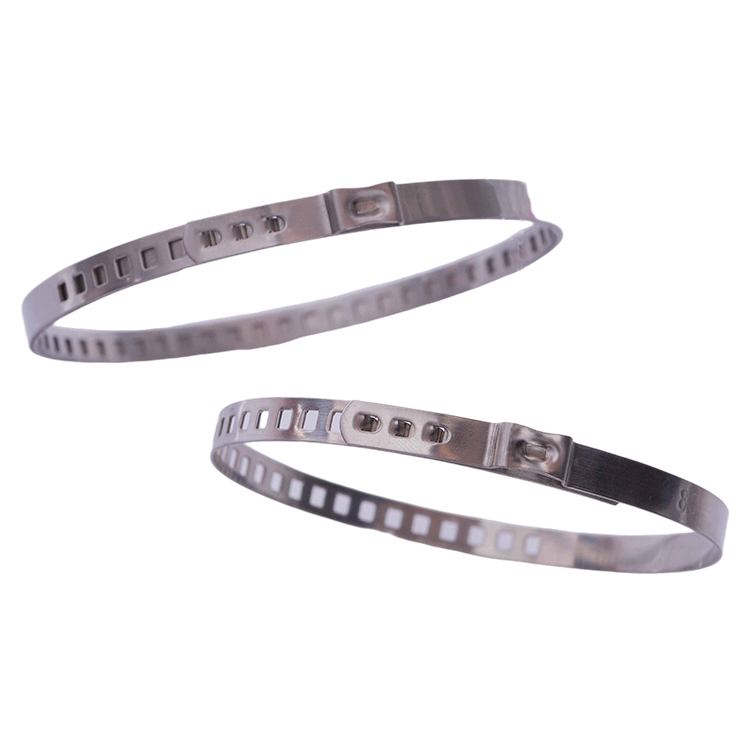

ADJUSTABLE 7mm Band
The 163 series clamp can be adjusted to several diameters within the clamping range.
Simple and fast installation, visible deformation provides evidence of proper closure. Smooth edges reduced risk of damage to parts being clamped

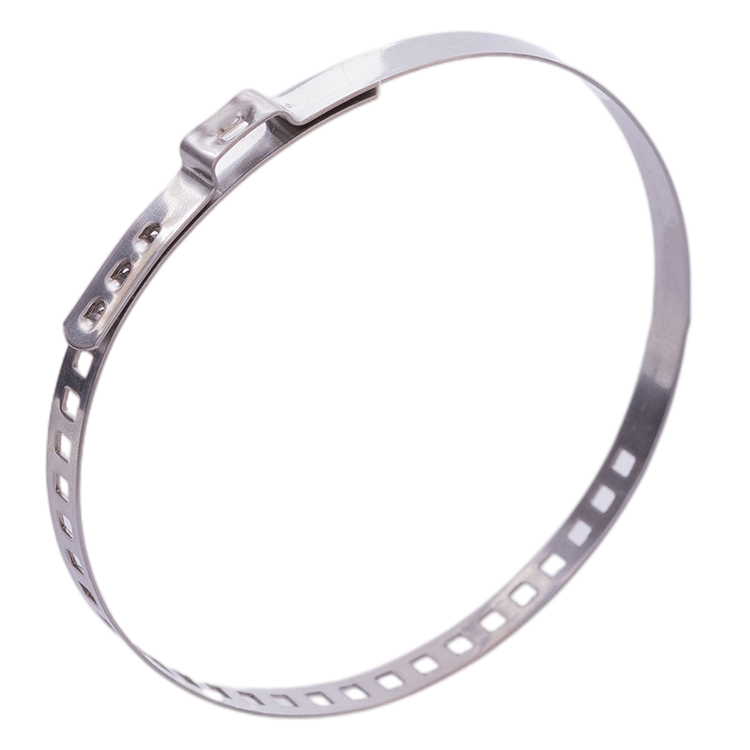

Radial Guiding Channel
This clamp features "radial guiding". One end of the band has a thin channel designed to align with a small tab on the other end of the band.
When the clamping band is wound over the clamping surface, the tab slips into the radial channel for quick, easy installation. The final result is an effective and powerful all-round seal.
|
NO. |
Parameters | Details |
|
1. |
Bandwidth*thickness | 7*0.6mm/8/9*0.7mm |
|
2. |
Size | 40mm to all |
|
3. |
Surface Treatment | Polishing |
|
4. |
OEM/ODM | OEM /ODM is welcome |
Product Components
Production Application
Main application areas
Industrial pipeline connection
Applicable to the connection of hoses and hard pipes in the fields of automobiles, trains, ships, petrochemicals, water supply systems, etc., especially suitable for non-detachable permanent installation rings
Precision equipment and living facilities
Widely used in fluid delivery pipelines of medical equipment and beverage machines (such as beer machines, coffee machines) to ensure sealing and reliability
Automobile pipeline system
Key component fixing: used for key parts such as airbag pipelines, fuel pipelines, hydraulic transmission systems, etc., providing one-time fastening guarantees
General connection scenarios: covering various pipe diameters from small hoses to heavy truck exhaust pipes
Product Advantage
| Bandwidth | 12/12.7/15/20mm |
| Thickness | 0.6/0.8/1.0mm |
| Hole size | M6/M8/M10 |
| Steel Band | Carbon Steel or Stainless Steel |
| Surface treatment | Zinc Plated or Polishing |
| Rubber | PVC/EPDM/Silicone |
| EPDM Rubber temperature resistance | -30℃-160℃ |
| Rubber color | Black/ Red/ Grey/White/Orange etc. |
| OEM | Accpetable |
| Certification | IS09001:2008/CE |
| Standard | DIN3016 |
| Payment Terms | T/T,L/C,D/P,Paypal and so on |
| Application | Engine compartment, fuel lines, brake lines, etc. |
Packing Process
Box packaging: We provide white boxes, black boxes, kraft paper boxes, color boxes and plastic boxes, can be designed and printed according to customer requirements.
Transparent plastic bags are our regular packaging, we have self-sealing plastic bags and ironing bags, can be provided according to customer needs, of course, we can also provide printed plastic bags, customized according to customer needs.
Generally speaking, the outer packaging are conventional export kraft cartons, we can also provide printed cartons according to customer requirements: white, black or color printing can be. In addition to sealing the box with tape, we will pack the outer box, or set woven bags, and finally beat the pallet, wooden pallet or iron pallet can be provided.
Certificates
Product Inspection Report
Our Factory
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory welcome your visit at anytime
Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed
Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your
quantity
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free only you afford is freight cost
Q5: What is your terms of payment?
A: L/C, T/T ,western union and so on
Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
|
|
Min(mm) |
Max(mm) |
(mm) |
(mm) |
|
|
5.3 |
6.5 |
5 |
0.5 |
TOESS6.5 |
|
5.8 |
7 |
5 |
0.5 |
TOESS7 |
|
6.8 |
8 |
5 |
0.5 |
TOESS8 |
|
7 |
8.7 |
5 |
0.5 |
TOESS8.7 |
|
7.8 |
9.5 |
5 |
0.5 |
TOESS9.5 |
|
8.8 |
10.5 |
5 |
0.5 |
TOESS10.5 |
|
10.1 |
11.8 |
5 |
0.5 |
TOESS11.8 |
|
9.4 |
11.9 |
7 |
0.6 |
TOESS11.9 |
|
9.8 |
12.3 |
7 |
0.6 |
TOESS12.3 |
|
10.3 |
12.8 |
7 |
0.6 |
TOESS12.8 |
|
10.8 |
13.3 |
7 |
0.6 |
TOESS13.3 |
|
11.5 |
14 |
7 |
0.6 |
TOESS14 |
|
12 |
14.5 |
7 |
0.6 |
TOESS14.5 |
|
12.8 |
15.3 |
7 |
0.6 |
TOESS15.3 |
|
13.2 |
15.7 |
7 |
0.6 |
TOESS15.7 |
|
13.7 |
16.2 |
7 |
0.6 |
TOESS16.2 |
|
14.5 |
17 |
7 |
0.6 |
TOESS17 |
|
15 |
17.5 |
7 |
0.6 |
TOESS17.5 |
|
15.3 |
18.5 |
7 |
0.6 |
TOESS18.5 |
|
16 |
19.2 |
7 |
0.6 |
TOESS19.2 |
|
16.6 |
19.8 |
7 |
0.6 |
TOESS19.8 |
|
17.8 |
21 |
7 |
0.6 |
TOESS21 |
|
19.4 |
22.6 |
7 |
0.6 |
TOESS22.6 |
|
20.9 |
24.1 |
7 |
0.6 |
TOESS24.1 |
|
22.4 |
25.6 |
7 |
0.6 |
TOESS25.6 |
|
23.9 |
27.1 |
7 |
0.6 |
TOESS27.1 |
|
25.4 |
28.6 |
7 |
0.6 |
TOESS28.6 |
|
28.4 |
31.6 |
7 |
0.6 |
TOESS31.6 |
|
31.4 |
34.6 |
7 |
0.6 |
TOESS34.6 |
|
34.4 |
37.6 |
7 |
0.6 |
TOESS37.6 |
|
36.4 |
39.6 |
7 |
0.6 |
TOESS39.6 |
|
39.3 |
42.5 |
7 |
0.6 |
TOESS42.5 |
|
45.3 |
48.5 |
7 |
0.6 |
TOESS48.5 |
|
52.8 |
56 |
7 |
0.6 |
TOESS56 |
|
55.8 |
59 |
7 |
0.6 |
TOESS59 |
Packaging
Single ear hose clamps package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
- our colour box with logo.
- we can provide customer bar code and label for all packing
- Customer designed packing are available
Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.
We also accept special package with plastic separated box.Customize the box size according to customer’s requirements.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
