Product Description
Heavy-duty spring-loaded T-bolt clamps provide high-performance sealing solutions in demanding applications with significant temperature and pressure fluctuations. The stainless steel spring-loaded band clamp automatically compensates for thermal expansion and contraction of the hose or fitting connection, maintaining uniform sealing pressure and ensuring a reliable seal. The constant tension design helps prevent loosening and leakage due to temperature variations in critical applications.
|
NO. |
Parameters | Details |
|
1. |
Bandwidth*thickness | 19mm*0.6mm |
|
2. |
Size | 35-40mm to all |
|
3. |
Screw | M6*75mm |
|
4. |
Loading Torque | 20N.m |
|
5 |
OEM/ODM | OEM /ODM is welcome |
|
6 |
Surface | Polishing/Yellow Zinc-plated/White Zinc-plated |
|
7 |
Material | Stainless steel:200 series and 300 series/galvanized iron |
Product Video

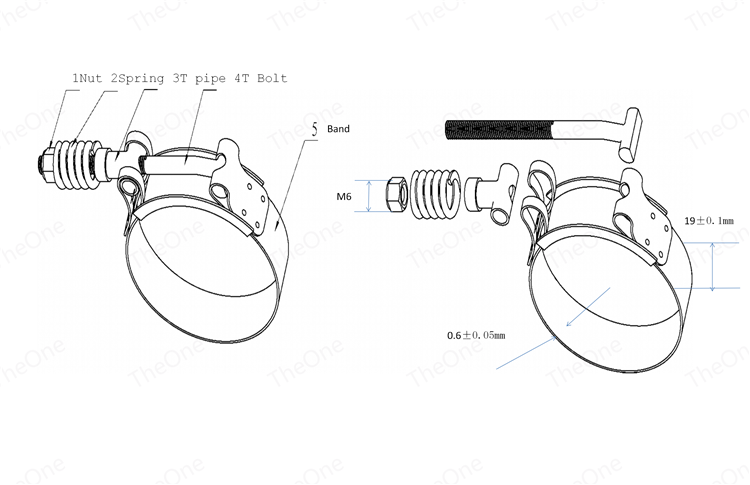

Product Components

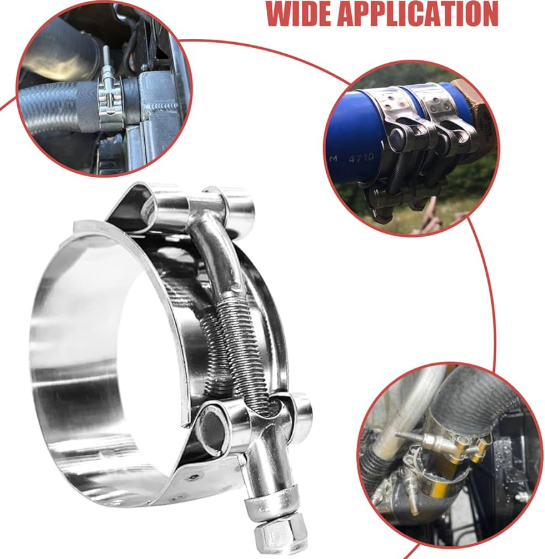

Production Application
Primary Applications
Spring-loaded T-bolt clamps are a heavy-duty solution used in critical applications where a standard clamp would fail due to changing conditions.
Charge Air Cooler (CAC) Systems: Their main use is in turbocharged and supercharged engines in heavy-duty trucks and equipment, where significant temperature and pressure variations occur.
Engine Coolant Systems: They are ideal for primary engine coolant hoses which experience thermal expansion and contraction during operation.
Industrial and Agricultural Machinery: Used in various heavy machinery and large diameter irrigation systems where reliable, long-term sealing performance is required.
Marine: Type 316 stainless steel variants are used in marine applications for their superior saltwater corrosion resistance
Product Advantage
The self-adjusting diameter helps maintain constant tension during extremely low or high temperatures and thermal cycling.
The spring-loaded design provides constant band tension, ensuring a tight fit without adjustment.
Durable and long-lasting design withstands thermal stress and offers high levels of vibration resistance, shock resistance, high-temperature resistance, and corrosion resistance.
Rounded edges reduce the risk of damage to clamped components, including hoses in critical applications.
201/304/316 stainless steel band with galvanized self-locking nut, bolt, and spring.
Packing Process
Box packaging: We provide white boxes, black boxes, kraft paper boxes, color boxes and plastic boxes, can be designed and printed according to customer requirements.
Transparent plastic bags are our regular packaging, we have self-sealing plastic bags and ironing bags, can be provided according to customer needs, of course, we can also provide printed plastic bags, customized according to customer needs.
Generally speaking, the outer packaging are conventional export kraft cartons, we can also provide printed cartons according to customer requirements: white, black or color printing can be. In addition to sealing the box with tape, we will pack the outer box, or set woven bags, and finally beat the pallet, wooden pallet or iron pallet can be provided.
Certificates
Product Inspection Report
Our Factory
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory welcome your visit at anytime
Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed
Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your
quantity
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free only you afford is freight cost
Q5: What is your terms of payment?
A: L/C, T/T ,western union and so on
Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
|
|
Min(mm) |
Max(mm) |
(mm) |
(mm) |
W2 |
|
35 |
40 |
19 |
0.6 |
TOSTS40 |
|
38 |
43 |
19 |
0.6 |
TOSTS43 |
|
41 |
46 |
19 |
0.6 |
TOSTS46 |
|
44 |
51 |
19 |
0.6 |
TOSTS51 |
|
51 |
59 |
19 |
0.6 |
TOSTS59 |
|
54 |
62 |
19 |
0.6 |
TOSTS62 |
|
57 |
65 |
19 |
0.6 |
TOSTS65 |
|
60 |
68 |
19 |
0.6 |
TOSTS68 |
|
63 |
71 |
19 |
0.6 |
TOSTS71 |
|
67 |
75 |
19 |
0.6 |
TOSTS75 |
|
70 |
78 |
19 |
0.6 |
TOSTS78 |
|
73 |
81 |
19 |
0.6 |
TOSTS81 |
|
76 |
84 |
19 |
0.6 |
TOSTS84 |
|
79 |
87 |
19 |
0.6 |
TOSTS87 |
|
83 |
91 |
19 |
0.6 |
TOSTS91 |
|
86 |
94 |
19 |
0.6 |
TOSTS94 |
|
89 |
97 |
19 |
0.6 |
TOSTS97 |
|
92 |
100 |
19 |
0.6 |
TOSTS100 |
|
95 |
103 |
19 |
0.6 |
TOSTS103 |
|
102 |
110 |
19 |
0.6 |
TOSTS110 |
|
108 |
116 |
19 |
0.6 |
TOSTS116 |
|
114 |
122 |
19 |
0.6 |
TOSTS122 |
|
121 |
129 |
19 |
0.6 |
TOSTS129 |
|
127 |
135 |
19 |
0.6 |
TOSTS135 |
|
133 |
141 |
19 |
0.6 |
TOSTS141 |
|
140 |
148 |
19 |
0.6 |
TOSTS148 |
|
146 |
154 |
19 |
0.6 |
TOSTS154 |
|
152 |
160 |
19 |
0.6 |
TOSTS160 |
|
159 |
167 |
19 |
0.6 |
TOSTS167 |
|
165 |
173 |
19 |
0.6 |
TOSTS173 |
|
172 |
180 |
19 |
0.6 |
TOSTS180 |
|
178 |
186 |
19 |
0.6 |
TOSTS186 |
|
184 |
192 |
19 |
0.6 |
TOSTS192 |
|
190 |
198 |
19 |
0.6 |
TOSTS198 |
Packaging
T Spring Hose Clamps can be packed with poly bag,paper card plastic bag,and customer designed packaging.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
