Product Description
The T-type spring clamp is a heavy-duty pipe connection fitting, whose core features stem from its unique spiral spring design and integrated structure, enabling it to perform exceptionally well under various working conditions.
This innovative clamp is durable and reliable, providing a secure hold while accommodating the natural expansion and contraction of pipes due to temperature fluctuations.
One of the major advantages of the T-bolt spring pipe clamp is its robust and durable construction. Made from high-quality materials, it ensures long-lasting performance even in the harshest environments. The T-bolt design makes it very easy to install and adjust, making it a favorite among professionals and DIY enthusiasts alike. Thanks to its spring mechanism, this pipe clamp provides flexible yet firm clamping force, preventing any accidental movement or vibration that could lead to leaks or damage.
Another major advantage of T-bolt spring pipe clamps is their versatility. They are suitable for a wide range of applications, including HVAC systems, piping, and industrial piping. Whether you are using metal, plastic, or rubber pipes, this clamp handles them with ease, providing a reliable and secure connection.
The T- type spring clamp is usually made of high-quality materials such as 304 stainless steel and is polished at the edges. This effectively prevents scratches on the pipe surface. It can still maintain good performance in humid, acidic, alkaline and other corrosive environments, thereby extending the service life.
|
NO. |
Parameters | Details |
|
1. |
Bandwidth*thickness | 19mm*0.6mm |
|
2. |
Size | 35-40mm to all |
|
3. |
Screw | M6*75mm |
|
4. |
Loading Torque | 15N.m |
|
5 |
OEM/ODM | OEM /ODM is welcome |
|
6 |
Surface | Polishing/Yellow Zinc-plated/White Zinc-plated |
|
7 |
Material | Stainless steel:200 series and 300 series/galvanized iron |

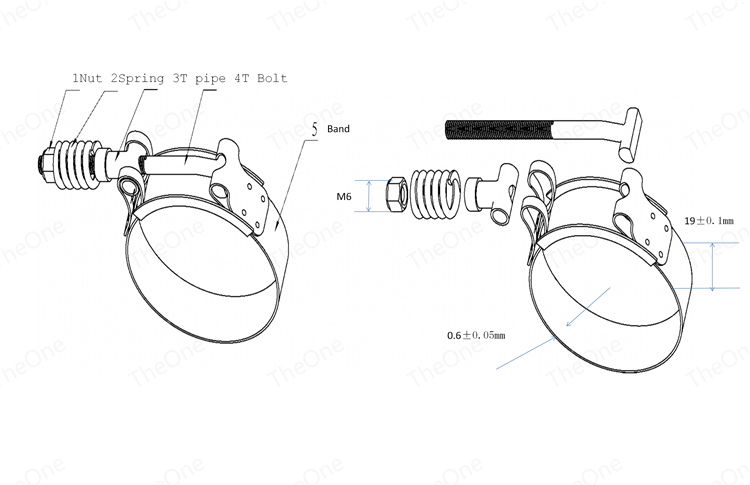

Product Components
Production Application
Product Advantage
Bandwidth:19mm
Thickness:0.6mm
Size : 46-52mm to all
Surface Treatment :Zinc Plated / Polishing

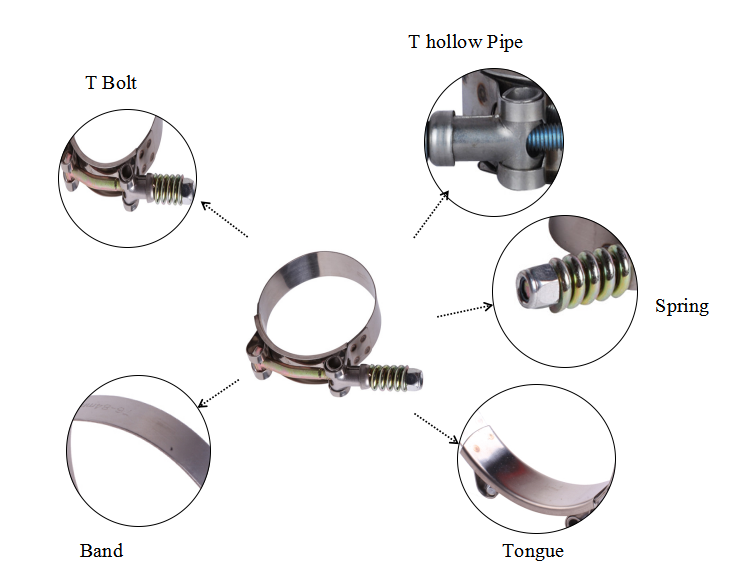

Components:band, Bridge Plate ,T -joint ,T bolt , nut
Bolt Size: M6
Manufacture Technique: Stamping and Welding
Free Torque: ≤1Nm
Loading Torque :≥13Nm
Certification:ISO9001/CE
Packing:Plastic Bag/Box/Carton /Pallet
Packing Process
Box packaging: We provide white boxes, black boxes, kraft paper boxes, color boxes and plastic boxes, can be designed and printed according to customer requirements.
Transparent plastic bags are our regular packaging, we have self-sealing plastic bags and ironing bags, can be provided according to customer needs, of course, we can also provide printed plastic bags, customized according to customer needs.
Generally speaking, the outer packaging are conventional export kraft cartons, we can also provide printed cartons according to customer requirements: white, black or color printing can be. In addition to sealing the box with tape, we will pack the outer box, or set woven bags, and finally beat the pallet, wooden pallet or iron pallet can be provided.
Certificates
Product Inspection Report
Our Factory
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory welcome your visit at anytime
Q2: What’s the MOQ?
A: 500 or 1000 pcs /size,small order is welcomed
Q3: How long is your delivery time?
A: Generally it is 2-3 days if goods are in stock. Or it is 25-35 days if the goods are on producing, it is according to your
quantity
Q4: Do you provide samples? Is it free or extra?
A: Yes, we could offer the samples for free only you afford is freight cost
Q5: What is your terms of payment?
A: L/C, T/T ,western union and so on
Q6: Can you put our company’s logo on the band of the hose clamps?
A: Yes, we can put your logo if you can provides us with copyright and letter of authority, OEM order is welcomed.
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
|
|
Min(mm) |
Max(mm) |
(mm) |
(mm) |
W2 |
|
35 |
40 |
19 |
0.6 |
TOSTS40 |
|
38 |
43 |
19 |
0.6 |
TOSTS43 |
|
41 |
46 |
19 |
0.6 |
TOSTS46 |
|
44 |
51 |
19 |
0.6 |
TOSTS51 |
|
51 |
59 |
19 |
0.6 |
TOSTS59 |
|
54 |
62 |
19 |
0.6 |
TOSTS62 |
|
57 |
65 |
19 |
0.6 |
TOSTS65 |
|
60 |
68 |
19 |
0.6 |
TOSTS68 |
|
63 |
71 |
19 |
0.6 |
TOSTS71 |
|
67 |
75 |
19 |
0.6 |
TOSTS75 |
|
70 |
78 |
19 |
0.6 |
TOSTS78 |
|
73 |
81 |
19 |
0.6 |
TOSTS81 |
|
76 |
84 |
19 |
0.6 |
TOSTS84 |
|
79 |
87 |
19 |
0.6 |
TOSTS87 |
|
83 |
91 |
19 |
0.6 |
TOSTS91 |
|
86 |
94 |
19 |
0.6 |
TOSTS94 |
|
89 |
97 |
19 |
0.6 |
TOSTS97 |
|
92 |
100 |
19 |
0.6 |
TOSTS100 |
|
95 |
103 |
19 |
0.6 |
TOSTS103 |
|
102 |
110 |
19 |
0.6 |
TOSTS110 |
|
108 |
116 |
19 |
0.6 |
TOSTS116 |
|
114 |
122 |
19 |
0.6 |
TOSTS122 |
|
121 |
129 |
19 |
0.6 |
TOSTS129 |
|
127 |
135 |
19 |
0.6 |
TOSTS135 |
|
133 |
141 |
19 |
0.6 |
TOSTS141 |
|
140 |
148 |
19 |
0.6 |
TOSTS148 |
|
146 |
154 |
19 |
0.6 |
TOSTS154 |
|
152 |
160 |
19 |
0.6 |
TOSTS160 |
|
159 |
167 |
19 |
0.6 |
TOSTS167 |
|
165 |
173 |
19 |
0.6 |
TOSTS173 |
|
172 |
180 |
19 |
0.6 |
TOSTS180 |
|
178 |
186 |
19 |
0.6 |
TOSTS186 |
|
184 |
192 |
19 |
0.6 |
TOSTS192 |
|
190 |
198 |
19 |
0.6 |
TOSTS198 |
