15.8mm Contant High Torque With 410 Long Screw Heavy Duty Worm Gear Type Hose Clamp

Heavy duty American type hose clamp is widely used on the joints of oil, gas, liquid and rubber hose of the automobile, ship, tractor, sprinkler, gasoline engine, diesel engine and other mechanical equipment, and also in the Construction, fire and other fields of industry. With the characteristics of large torque, high fastness, and unlimited length, it can be easily used in some large volume . Heavy duty American type hose clamp are available in SS200 series and SS300 series. For further information or products details, please feel free to contact us.



Main market:American ,Turkey,Columbia and Russia.


Product Detail

Size List

Package & Accessories

Product Tags

vd Product Description

The recommended installation torque is ≥15N.m

Use constant torque hose clamp on the heating and cooling systems. They are worm-drive and provide a series of spring washers. The constant torque hose clamp design automatically adjusts its diameter. It compensates for the normal expansion and construction of hose and tubing during vehicle operation and shutdown. Clamps prevent leakage and rupture problems caused by cold flow or changes in the environment or operating temperature.

Since the constant torque clamp is self-adjusting to keep a consistent sealing pressure, you don’t need to retorque the hose clamp regularly. Proper torque installation should be checked at room temperature.

 Band material   stainless steel 301,stainless steel 304,stainless steel 316
  Band Thickness    Stainless steel
   0.8mm
 Band width   15.8mm
 Wrench   8mm
 Housing Material   stainless steel or galvanized iron
  Screw style  W2  W4/5
 Hex screw  Hex screw
 Model number   As your requirement
 Structure   Swivel clamp
Product feature Volt-endurance;torque balance;large adjustment range



vd Product Components

erg美式重型长螺丝22_01

vd Material

TO Part No.

Material

Band

Housing

Screw

Washer

TOHAS

W2

SS200/SS300 series

SS200/SS300 series

SS410

2CR13

TOHASS

W4

SS200/SS300 series

SS200/SS300 series

SS200/SS300 series

SS200/SS300 series

vdApplication

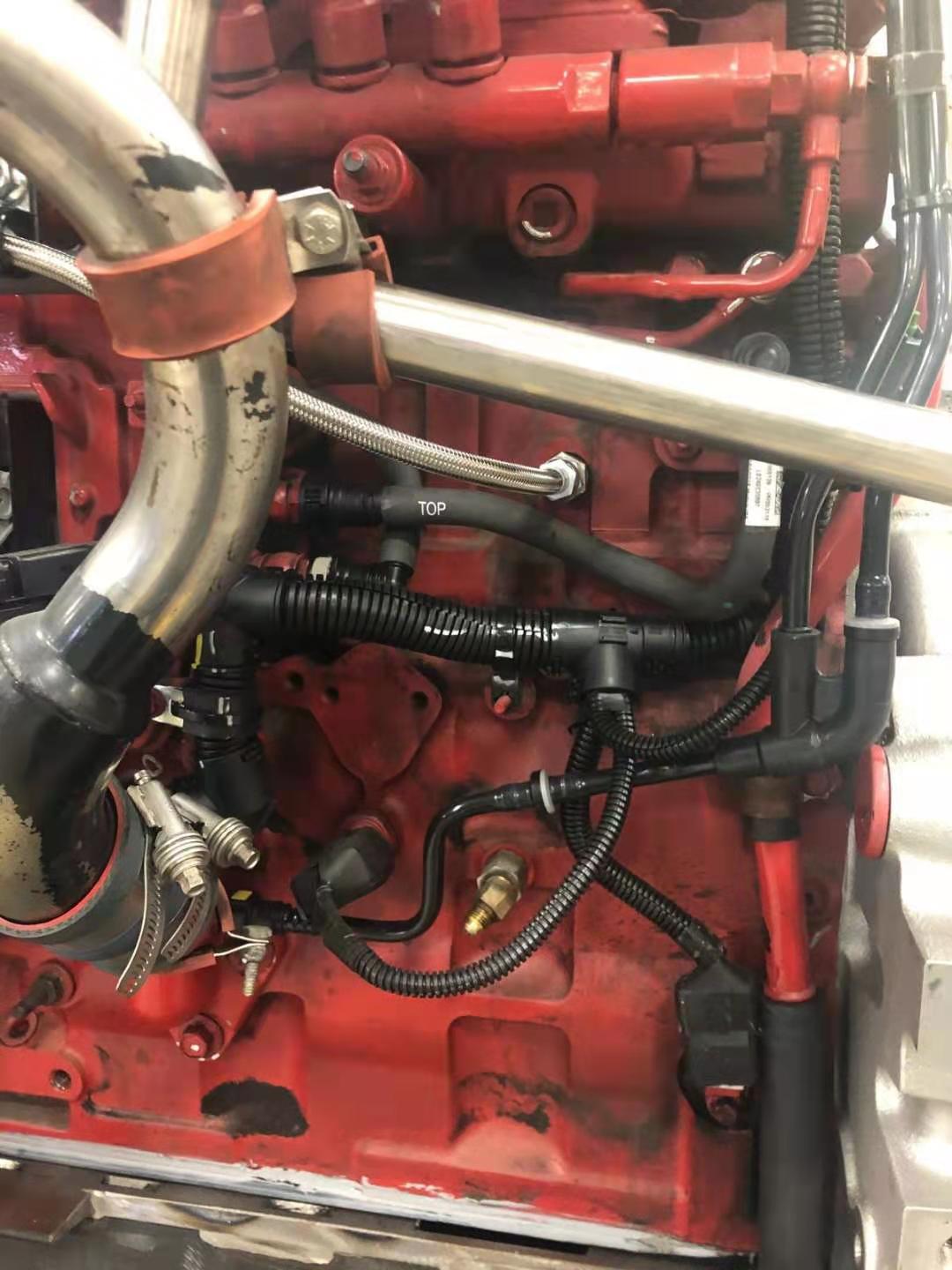

This product is mainly used on the large engine slower moving vehicles e.g. earth movers, trucks and tractors

微信图片_20210517145047AAM-product-constant-torque-app


  • Previous:
  • Next:

  • Clamp Range

    Bandwidth

    Thickness

    TO Part No.

    Min (mm)

    Max (mm)

    Inch

    (mm)

    (mm)

    W2

    W4

    25

    45

    1”-1 3/4”

    15.8

    0.8

    TOHAS45

    TOHASS45

    32

    54

    1 1/4”-2 1/8”

    15.8

    0.8

    TOHAS54

    TOHASS54

    45

    66

    1 3/4”-2 5/8”

    15.8

    0.8

    TOHAS66

    TOHASS66

    57

    79

    2 1/4”-3 1/8”

    15.8

    0.8

    TOHAS79

    TOHASS79

    70

    92

    2 3/4”-3 5/8”

    15.8

    0.8

    TOHAS92

    TOHASS92

    83

    105

    3 1/4”-4 1/8”

    15.8

    0.8

    TOHAS105

    TOHASS105

    95

    117

    3 3/4”-4 5/8”

    15.8

    0.8

    TOHAS117

    TOHASS117

    108

    130

    4 1/4”-5 1/8”

    15.8

    0.8

    TOHAS130

    TOHASS130

    121

    143

    4 3/4”-5 5/8”

    15.8

    0.8

    TOHAS143

    TOHASS143

    133

    156

    5 1/4”-6 1/8”

    15.8

    0.8

    TOHAS156

    TOHASS156

    146

    168

    5 3/4”-6 5/8”

    15.8

    0.8

    TOHAS168

    TOHASS168

    159

    181

    6 1/4”-7 1/8”

    15.8

    0.8

    TOHAS181

    TOHASS181

    172

    193

    6 3/4”-7 5/8”

    15.8

    0.8

    TOHAS193

    TOHASS193

    vd Package

    Heavy duty American type hose clamp package are available with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.

    • our colour box with logo.
    • we can provide customer bar code and label for all packing
    • Customer designed packing are available
    ef

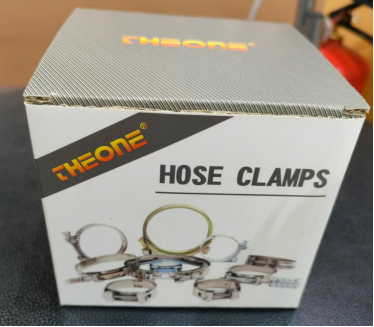

    Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.

    vd

    Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.

    s-l300_副本

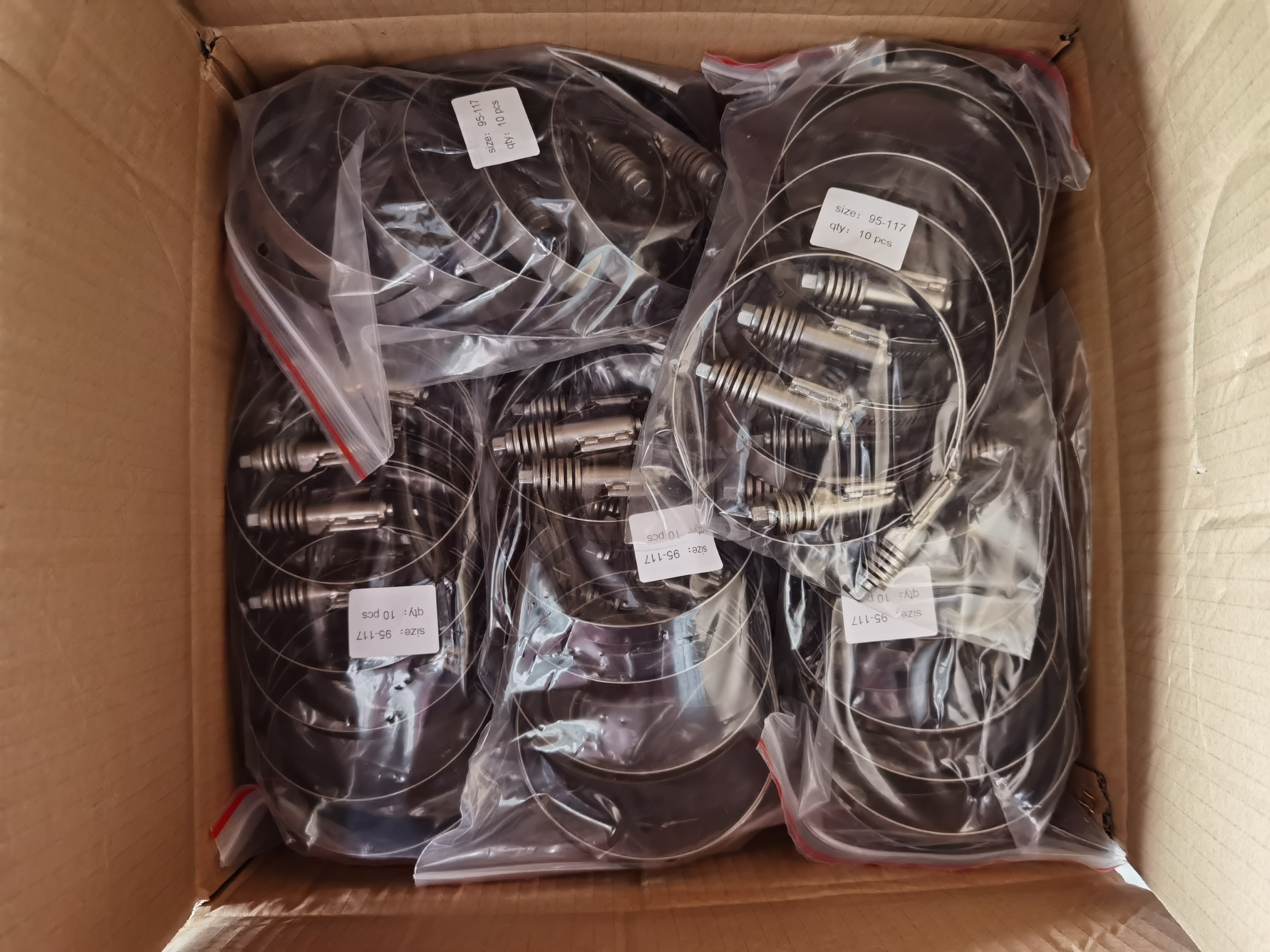

    Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.

    We also accept special package with plastic separated box.Customize the box size according to customer’s requirements.

    vd Accessories

    We also provide the flexible shaft nut driver for helping your work easily.
