Stainless Steel German Type Partial Head Hose Clip, Non-Perforated Adjustable Worm Drive Hose Clamp
Partial head German type hose clamp Comply with the international standard DIN3017, pass the 72-hour salt spray test, and resist corrosion. The throat hoop is made of European 301/304/316 stainless steel, precision stamping and forming, precise design, smooth twisting, even force, strong sealing ability, no thread slippage, large adjustment range, uniform force when tightening, resistance to torsion and Endurance strength is very high.
Main Market: Russia, Europe, America and some Middle East countries
Production Description
Features：The difference between the German-style eccentric head and the general worm gear clamp is that it is specially designed to prevent the hose from being damaged during the installation process. It can be placed in a limited space, and the superior torque and evenly distributed clamping pressure can be maintained. Long-term seal.
Product advantages:German-style eccentric head products have no solder joints. Compared with the German-style, the salt spray test will be better, and the performance is far beyond the DIN3017 standard.
|
NO. |
Products name |
German Type Partial Head Hose Clips |
|
1. |
Material | W1:All steel,zinc plated W2:Band and Housing stainless steel,steel screw W4:All stainless steel(SS201,SS301,SS304,SS316) |
| 2. | Band | Non-perforated |
|
2. |
Band width | 9mm,12mm |
|
3. |
Band Thickness | 0.6-0.8mm |
|
3. |
Clamp Range | 8-12mm to up |
|
4. |
Structure | Worm drive |
|
5. |
Certification | Head crossed or slotted type |
|
6. |
OEM/ODM | ISO/SGS |
Components
Material
|
TO Part No. |
Material |
Band |
Housing |
Screw |
|
TOGM |
W1 |
Aço galvanizado |
Aço galvanizado |
Aço galvanizado |
|
TOGMS |
W2 |
Série SS200/SS300 |
Série SS200/SS300 |
Aço galvanizado |
|
TOGMSS |
W4 |
Série SS200/SS300 |
Série SS200/SS300 |
Série SS200/SS300 |
|
TOGMSSV |
W5 |
SS316 |
SS316 |
SS316 |
Application
Application areas:Widely used to connect cooling water pipes, ventilation systems, decompression and pressurized fuel systems.
Lista de produtos
|
Clamp Range |
Bandwidth |
Thickness |
TO Part No. |
||||
|
Min(mm) |
Max(mm) |
(mm) |
(mm) |
W1 |
W2 |
W4 |
W5 |
|
8 |
12 |
9/12 |
0.6 |
TOPGM12 |
TOPGMS12 |
TOPGMSS12 |
TOPGMSSV12 |
|
10 |
16 |
9/12 |
0.6 |
TOPGM16 |
TOPGMS16 |
TOPGMSS16 |
TOPGMSSV16 |
|
12 |
20 |
9/12 |
0.6 |
TOPGM20 |
TOPGMS20 |
TOPGMSS20 |
TOPGMSSV20 |
|
16 |
25 |
9/12 |
0.6 |
TOPGM25 |
TOPGMS25 |
TOPGMSS25 |
TOPGMSSV25 |
|
20 |
32 |
9/12 |
0.6 |
TOPGM32 |
TOPGMS32 |
TOPGMSS32 |
TOPGMSSV32 |
|
25 |
40 |
9/12 |
0.6 |
TOPGM40 |
TOPGMS40 |
TOPGMSS40 |
TOPGMSSV40 |
|
30 |
45 |
9/12 |
0.6 |
TOPGM45 |
TOPGMS45 |
TOPGMSS45 |
TOPGMSSV45 |
|
32 |
50 |
9/12 |
0.6 |
TOPGM50 |
TOPGMS50 |
TOPGMSS50 |
TOPGMSSV50 |
|
40 |
60 |
9/12 |
0.6 |
TOPGM60 |
TOPGMS60 |
TOPGMSS60 |
TOPGMSSV60 |
|
50 |
70 |
9/12 |
0.6 |
TOPGM70 |
TOPGMS70 |
TOPGMSS70 |
TOPGMSSV70 |
|
60 |
80 |
9/12 |
0.6 |
TOPGM80 |
TOPGMS80 |
TOPGMSS80 |
TOPGMSSV80 |
|
70 |
90 |
9/12 |
0.6 |
TOPGM90 |
TOPGMS90 |
TOPGMSS90 |
TOPGMSS90 |
|
80 |
100 |
9/12 |
0.6 |
TOPGM100 |
TOPGMS100 |
TOPGMSS100 |
TOPGMSSV100 |
|
90 |
110 |
9/12 |
0.6 |
TOPGM110 |
TOPGMS110 |
TOPGMSS110 |
TOPGMSSV110 |
|
100 |
120 |
9/12 |
0.6 |
TOPGM120 |
TOPGMS120 |
TOPGMSS120 |
TOPGMSSV120 |
|
110 |
130 |
9/12 |
0.6 |
TOPGM130 |
TOPGMS130 |
TOPGMSS130 |
TOPGMSSV130 |
|
120 |
140 |
9/12 |
0.6 |
TOPGM140 |
TOPGMS140 |
TOPGMSS140 |
TOPGMSSV140 |
|
130 |
150 |
9/12 |
0.6 |
TOPGM150 |
TOPGMS150 |
TOPGMSS150 |
TOPGMSSV150 |
|
140 |
160 |
9/12 |
0.6 |
TOPGM160 |
TOPGMS160 |
TOPGMSS160 |
TOPGMSSV160 |
|
150 |
170 |
9/12 |
0.6 |
TOPGM170 |
TOPGMS170 |
TOPGMSS170 |
TOPGMSSV170 |
|
160 |
180 |
9/12 |
0.6 |
TOPGM180 |
TOPGMS180 |
TOPGMSS180 |
TOPGMSSV180 |
|
170 |
190 |
9/12 |
0.6 |
TOPGM190 |
TOPGMS190 |
TOPGMSS190 |
TOPGMSSV190 |
|
180 |
200 |
9/12 |
0.6 |
TOPGM200 |
TOPGMS200 |
TOPGMSS200 |
TOPGMSSV200 |

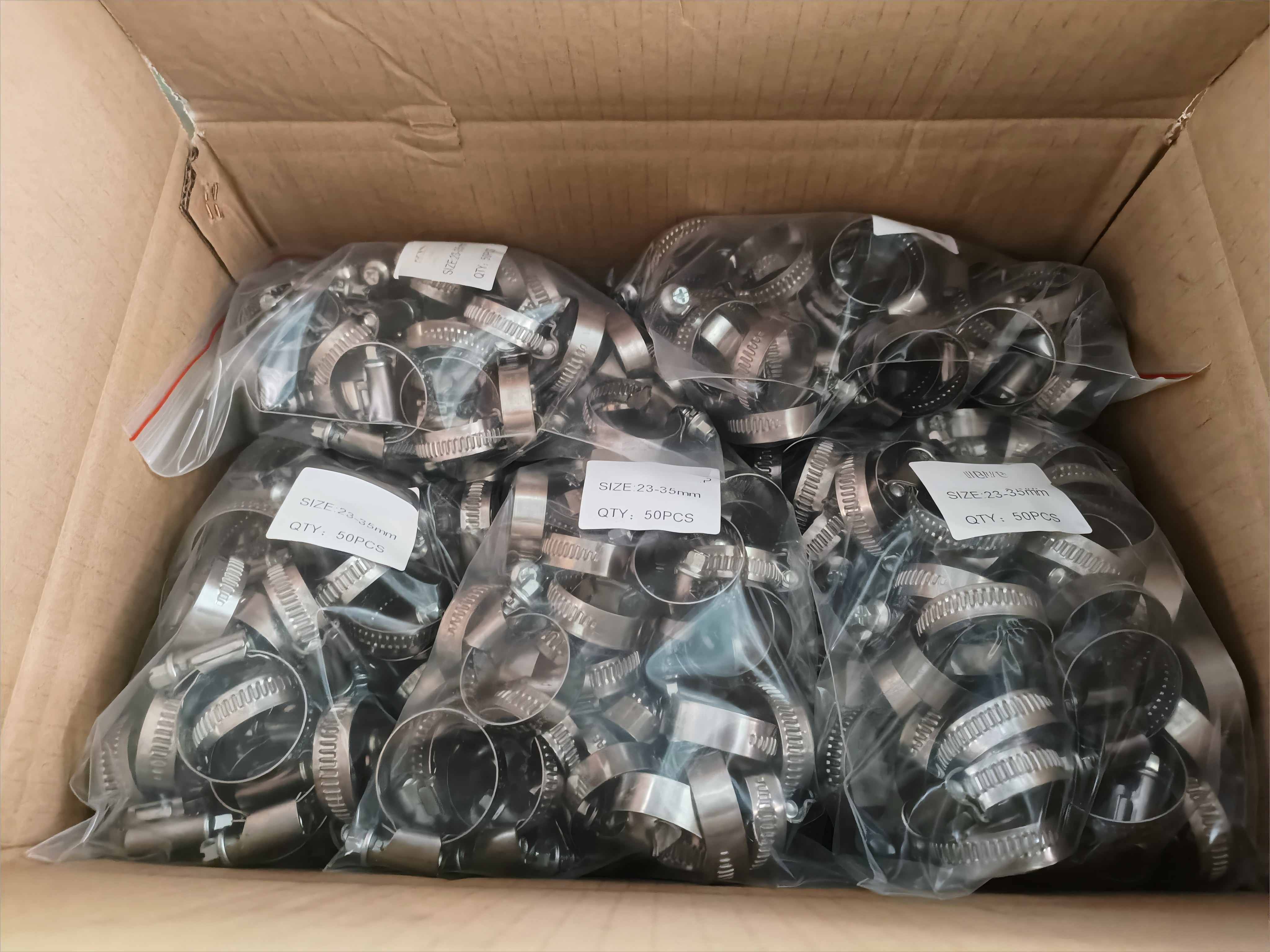

Packaging
German Hose Clamps can be packed with poly bag, paper box, plastic box, paper card plastic bag,and customer designed packaging.
- our colour box with logo.
- we can provide customer bar code and label for all packing
- Customer designed packing are available
Colour box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Plastic box packing:100clamps per box for small sizes, 50 clamps per box for large sizes, then shipped in cartons.
Poly bag with paper card packaging: each poly bag packaging is available in 2, 5,10 clamps, or customer packaging.
We also accept special package with plastic separated box.Customize the box size according to customer’s requirements.
Accessories
We also provide the flexible shaft nut driver for helping your work easily.
