T-bolt With Yello/White Zinc Plated Spring Wholesale Adjustable High Torque Pipe Clip

T Spring Hose Clamp is widely used in high vibration and large diameter applications common in heavy trucks,industrial machinery,off-road equipment,agricultural irrigation and machinery. It has a significant corrosion resistance.It has better shock absorption.For further information or products details ,please feel free to contact us.



Main market:America, Malaysia,Thailand and Turkey.


Product Detail

Size List

Package & Accessories

Product Tags

vdAbout this items

  • SAE #60. Effective diameter range: 2.75″ – 3.08″ (70mm – 78mm)
  • Nominal diameter: 2-7/8″. fits 2.5″ ID HPS Silicone Hose. Max. Torque spec: 75 in. Lbs
  • 3/4 inch
  • Provide uniform sealing pressure for a positive, reliable seal. Solid bands prevent Hose extrusions, and rounded Band edges protect soft Hose materials
  • Designed for Use in high vibration and large diameter applications such as air cooler system (CAC), aircraft, automotive, heavy duty truck, industrial, plumbing, Marine industries
  • NO.

    Parameters Details

    1.

    Bandwidth*thickness 19mm*0.6mm

    2.

    Size 35-40mm to all

    3.

    Screw M6*75mm

    4

    Spring White/yellow Galvanized

    4.

    Loading  Torque 20N.m

    5

    OEM/ODM OEM /ODM is welcome

    6

    Surface Polishing/Yellow Zinc-plated/White Zinc-plated

    7

    Material Stainless steel:200 series and 300 series/galvanized iron

vd Components

weT型弹簧24_01

vdApplication

This clamps design compenstates and provides constant tension to prevent leak paths due to temperature fluctuations.

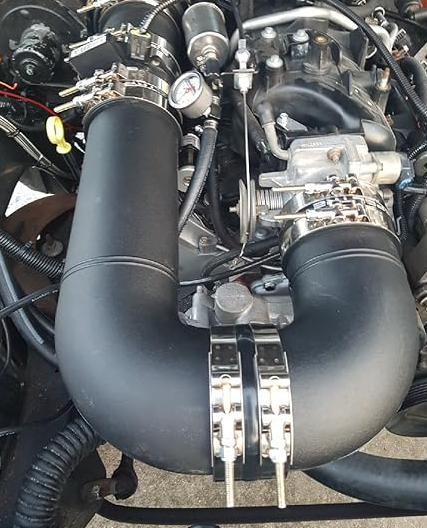

Typical applications include heavy truck charge air and cooling systems.

T bolt

vd Product List

Robust Pipe Clamp 2Double Bolt Pipe Clamp 3German type  Hose Clamp 4German Type Hose Clamp With Handle 5British Type Hose Clamp
Robust Pipe Clamp Double Bolt Pipe Clamp German type  Hose Clamp German Type Hose Clamp With Handle British Type Hose Clamp
6American Type Hose Clamp 7American Type Hose Clamp With Handle 8European Type  Hose Clamp 9Heavy Duty American Type Hose Clamp 10Blue Housing British Type Hose Clamp
American Type Hose Clamp American Type Hose Clamp With Handle European Type  Hose Clamp Heavy Duty American Type Hose Clamp Blue Housing British Type Hose Clamp
11U  Bolt Clamp 12T Type Pipe Clamp 13Strut Channel Pipe Clamp 14Pipe Clamp With Rubber 15Loop Hanger
U  Bolt Clamp T Type Pipe Clamp Strut Channel Pipe Clamp Pipe Clamp With Rubber Loop Hanger
16Ear Hose Clamp 17Spring Hose Clamp 18Rubber Clamp 19Double Wire Hose Calmp 20Mini Hose Clamp
Ear Hose Clamp Spring Hose Clamp Rubber Clamp Double Wire Hose Calmp Mini Hose Clamp

  • Previous:
  • Next:

  • Clamp Range

    Bandwidth

    Thickness

    TO Part No.

    Min(mm)

    Max(mm)

    (mm)

    (mm)

    W2

    35

    40

    19

    0.6

    TOSTS40

    38

    43

    19

    0.6

    TOSTS43

    41

    46

    19

    0.6

    TOSTS46

    44

    51

    19

    0.6

    TOSTS51

    51

    59

    19

    0.6

    TOSTS59

    54

    62

    19

    0.6

    TOSTS62

    57

    65

    19

    0.6

    TOSTS65

    60

    68

    19

    0.6

    TOSTS68

    63

    71

    19

    0.6

    TOSTS71

    67

    75

    19

    0.6

    TOSTS75

    70

    78

    19

    0.6

    TOSTS78

    73

    81

    19

    0.6

    TOSTS81

    76

    84

    19

    0.6

    TOSTS84

    79

    87

    19

    0.6

    TOSTS87

    83

    91

    19

    0.6

    TOSTS91

    86

    94

    19

    0.6

    TOSTS94

    89

    97

    19

    0.6

    TOSTS97

    92

    100

    19

    0.6

    TOSTS100

    95

    103

    19

    0.6

    TOSTS103

    102

    110

    19

    0.6

    TOSTS110

    108

    116

    19

    0.6

    TOSTS116

    114

    122

    19

    0.6

    TOSTS122

    121

    129

    19

    0.6

    TOSTS129

    127

    135

    19

    0.6

    TOSTS135

    133

    141

    19

    0.6

    TOSTS141

    140

    148

    19

    0.6

    TOSTS148

    146

    154

    19

    0.6

    TOSTS154

    152

    160

    19

    0.6

    TOSTS160

    159

    167

    19

    0.6

    TOSTS167

    165

    173

    19

    0.6

    TOSTS173

    172

    180

    19

    0.6

    TOSTS180

    178

    186

    19

    0.6

    TOSTS186

    184

    192

    19

    0.6

    TOSTS192

    190

    198

    19

    0.6

    TOSTS198

    vd Packaging

    T Spring Hose Clamps can be packed with poly bag,paper card plastic bag,and customer designed packaging.

    • 微信图片_20210609145806

    vd Accessories

    We also provide the flexible shaft nut driver for helping your work easily.
